GAS CLEANING PLANTS - AF SYSTEM DETAIL



Our  flue gas cleaning system AF can include, depending on the design necessities, the following sections:

- Primary cooling section by means of a radiant post-heating exchanger

- SNCR system

- Venturi scrubber

- Cooling boiler for thermal recuperation

- Dust collecting cyclone

- Dry reaction chamber for chemical reactants injection

- Fabric filter

- Wet gas absorber or other type of filter per necessity

- Post-heating exchanger

- Forced chimney for discharge into the atmosphere



Dimensional test on an AFS600 unit  ( changing over: a complete AF 1000 plant, mixed system)

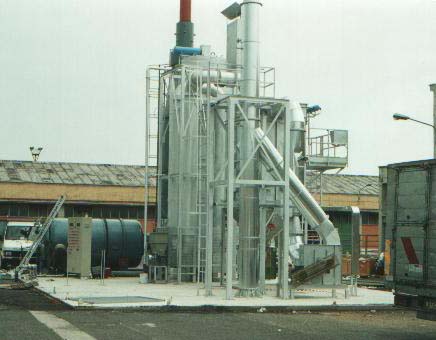

An AFS400 cleaning plant of a small furnace MAC400 (changing over: chimney effect with dry depuration system AFS)
